i386 Addressing Modes and Assembler Instructions

This chapter contains information specific to the Intel i386 processor architecture, which includes the i386, i486, and Pentium processors. The first section, "i386 Registers and Addressing Modes," lists the registers available and describes the addressing modes used by assembler instructions. The second section, "i386 Assembler Instructions," lists each assembler instruction with NeXT assembler syntax.
Note: Don't confuse the i386 architecture with the i386 processor. NEXTSTEP makes use of instructions specific to the i486 processor, and will not run on an i386 processor.

i386 Registers and Addressing Modes

This section describes the conventions used to specify addressing modes and instruction mnemonics for the Intel i386 processor architecture. The instructions themselves are detailed in the next section, "i386 Assembler Instructions."

Instruction Mnemonics
The instruction mnemonics that the assembler uses are based on the mnemonics described in the relevant Intel processor manuals.
Note: Branch instructions are always long (32 bits) for non-local labels on the NeXT i386 architecture machines. This allows the link editor to do procedure ordering (see the description of the -sectorder option in the ld(1) man page, and the "Link Optimization" paper in the directory /NextLibrary/Documentation/NextDev/Concepts/Performance).

Registers
Many instructions accept registers as operands. The available registers are listed in this section. The NeXT assembler for Intel i386 processors always uses names beginning with a percent sign (`%') for registers, so naming conflicts with identifiers aren't possible; further, all register names are in lowercase letters.

General Registers

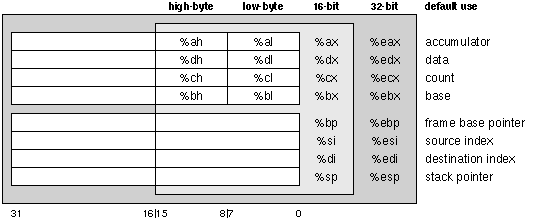

Each of the 32-bit general registers of the i386 architecture are accessible by different names, which specify parts of that register to be used. For example, the AX register can be accessed as a single byte (%ah or %al), a 16-bit value (%ax), or a 32-bit value (%eax). Figure 6-1 shows the names of these registers and their relation to the full 32-bit storage for each register:

Figure 6-1

Floating-Point Registers

%st
%st(0)%st(7)

Segment Registers

%cs code segment register

%ss stack segment register

%ds data segment register

%es data segment register (string operation destination segment)

%fs data segment register

%gs data segment register

Other Registers

%cr0%cr3 control registers

%db0%db7 debug registers

%tr3%tr7 test registers

Operands and Addressing Modes
The i386 architecture uses four kinds of instruction operands:

Each type of operand corresponds to an addressing mode. Register operands specify that the value stored in the named register is to be used by the operator. Immediate operands are constant values specified in assembler code. Direct memory operands are the memory location of labels, or the value of a named register treated as an address. Indirect memory operands are calculated at run time from the contents of registers and optional constant values.

Register Operands
A register operand is given simply as the name of a register. It can be any of the identifiers beginning with `%' listed above; for example, %eax. When an operator calls for a register operand of a particular size, the operand is listed as r8, r16, or r32.

Immediate Operands
Immediate operands are specified as numeric values preceded by a dollar sign (`$'). They are decimal by default, but can be marked as hexadecimal by beginning the number itself with `0x'. Simple calculations are allowed if grouped in parentheses. Finally, an immediate operand can be given as a label, in which case its value is the address of that label. Here are some examples:

$100
$0x5fec4
$(10*6) # calculated by the assembler
$begloop

A reference to an undefined label is allowed, but that reference must be resolved at link time.

Direct Memory Operands
Direct memory operands are references to labels in assembler source. They act as static references to a single location in memory relative to a specific segment, and are resolved at link time. Here's an example:

.data
var: .byte 0 # declare a byte-size variable labelled "var"
.text
.
.
.
movb %al,var # move the low byte of the AX register into the
# memory location specified by "var"

By default, direct memory operands use the %ds segment register. This can be overridden by prefixing the operands with the segment register desired and a colon:

movb %es:%al,var # move the low byte of the AX register into the
# memory location in the segment given by %es
# and "var"

Note that the segment override applies only to the memory operands in an instruction; "var" is affected, but not %al. The string instructions, which take two memory operands, use the segment override for both. A less common way of indicating a segment is to prefix the operator itself:

es/movb %al,%var # same as above

Indirect Memory Operands
Indirect memory operands are calculated from the contents of registers at run time. An indirect memory operand can contain a base register, and index register, a scale, and a displacement. The most general form is:

displacement(base_register,index_register,scale)

displacement is an immediate value. The base and index registers may be any 32-bit general register names, except that %esp can't be used as an index register. scale must be 1, 2, 4, or 8; no other values are allowed. The displacement and scale can be omitted, but at least one register must be specified. Also, if items from the end are omitted, the preceding commas can also be omitted, but the comma following an omitted item must remain:

10(%eax,%edx)
(%eax)
12(,%ecx,2)
12(,%ecx)

The value of an indirect memory operand is the memory location given by the contents of the register, relative to a segment's base address. The segment register used is %ss when the base register is %ebp or %esp, and %ds for all other base registers. For example:

movl (%eax),%edx # default segment register here is %ds

The above assembler instruction moves 32 bits from the address given by %eax into the %edx register. The address %eax is relative to the %ds segment register. A different segment register from the default can be specified by prefixing the operand with the segment register name and a colon (`:'):

movl %es:(%eax),%edx

A segment override can also be specified as an operator prefix:

es/movl (%eax),%edx

i386 Assembler Instructions

Note the following points about the information contained in this section:

Name is the name that appears in the upper left corner of a page in the Intel manuals.

Operation Name is the name that appears after the operator name in the Intel manuals. Processor-specific instructions are marked as they occur.

The form of operands is that used in Intel's i486 Microprocessor Programmer's Reference Manual.

The order of operands is source destination, the opposite of the order in Intel's manuals.

Instructions

Name Operator Operand Operation Name

aaa aaa ASCII Adjust after Addition

aad aad ASCII Adjust AX before

Division

aam aam ASCII Adjust AX after

Division

aas aas ASCII Adjust AL after

Subtraction

adc adc $imm8,r/m8 Add with Carry

adc $imm16,r/m16

adc $imm32,r/m32

adc $imm8,r/m16

adc $imm8,r/m32

adc r8,r/m8

adc r16,r/m16

adc r32,r/m32

adc r/m8,r8

adc r/m16,r16

adc r/m32,r32

add add $imm8,r/m8 Add

add $imm16,r/m16

add $imm32,r/m32

add $imm8,r/m16

add $imm8,r/m32

add r8,r/m8

add r16,r/m16

add r32,r/m32

add r/m8,r8

add r/m16,r16

add r/m32,r32

and and $imm8,r/m8 Logical AND

and $imm16,r/m16

and $imm32,r/m32

and $imm8,r/m16

and $imm8,r/m32

and r8,r/m8

and r16,r/m16

and r32,r/m32

and r/m8,r8

and r/m16,r16

and r/m32,r32

arpl arpl r16,r/m16 Adjust RPL Field of Selector

bound bound m16&16,r16 Check Array Index Against

bound m32&32,r32 Bounds

bsf bsf r/m16,r16 Bit Scan Forward

bsf r/m32,r16

bsr bsr r/m16,r16 Bit Scan Reverse

bsr r/m32,r16

bswap bswap r32 Byte Swap (i486-specific)

bt bt r16,r/m16 Bit Test

bt r32,r/m32

bt $imm8,r/m16

bt $imm8,r/m32

btc btc r16,r/m16 Bit Test and Complement

btc r32,r/m32

btc $imm8,r/m16

btc $imm8,r/m32

btr btr r16,r/m16 Bit Test and Reset

btr r32,r/m32

btr $imm8,r/m16

btr $imm8,r/m32

bts bts r16,r/m16 Bit Test and Set

bts r32,r/m32

bts $imm8,r/m16

bts $imm8,r/m32

call call rel16 Call Procedure

call r/m16

call ptr16:16

call m16:16

call rel32

call r/m32

lcall $imm16,$imm32

lcall m16

lcall m32

cbw/cwde cbw Convert Byte to Word/

cwde Convert Word to Doubleword

clc clc Clear Carry Flag

cld cld Clear Direction Flag

cli cli Clear Interrupt Flag

clts clts Clear Task-Switched Flag in

CR0

cmc cmc Complement Carry Flag

cmp cmp $imm8,r/m8 Compare Two Operands

cmp $imm16,r/m16

cmp $imm32,r/m32

cmp $imm8,r/m16

cmp $imm8,r/m32

cmp r8,r/m8

cmp r16,r/m16

cmp r32,r/m32

cmp r/m8,r8

cmp r/m16,r16

cmp r/m32,r32

cmps/cmpsb/cmpsw/cmpsd Compare String Operands

cmps m8,m8

cmps m16,m16

cmps m32,m32

cmpsb
cmpsw
cmpsd

(optional forms with segment override)

cmpsb %seg:0(%esi),%es:0(%edi)

cmpsw %seg:0(%esi),%es:0(%edi)

cmpsd %seg:0(%esi),%es:0(%edi)

cmpxchg cmpxchg r8,r/m8 Compare and Exchange

cmpxchg r16,r/m16 (i486-specific)

cmpxchg r32,r/m32

cmpxchg8b cmpxchg8b m32 Compare and Exchange 8 Bytes

(Pentium-specific)

cpuid cpuid CPU Identification

(Pentium-specific)

cwd/cdq cwd Convert Word to Doubleword/

cdq Convert Doubleword to

Quadword

daa daa Decimal Adjust AL after

Addition

das das Decimal Adjust AL after

Subtraction

dec dec r/m8 Decrement by 1

dec r/m16

dec r/m32

dec r16

dec r32

div div r/m8,%al Unsigned Divide

div r/m16,%ax

div r/m32,%eax

enter enter $imm16,$imm8 Make Stack Frame for Procedure

Parameters

f2xm1 f2xm1 Computer 2^x1

fabs fabs Absolute Value

fadd/faddp/fiadd Add

fadd m32real

fadd m64real

fadd ST(i),ST

fadd ST,ST(i)

faddp ST,ST(i)

fadd

fiadd m32int

fiadd m16int

fbld fbld m80dec Load Binary Coded Decimal

fbstp fbstp m80dec Store Binary Coded Decimal and

Pop

fchs fchs Change Sign

fclex/fnclex Clear Exceptions

fclex
fnclex

fcom/fcomp/fcompp Compare Real

fcom m32real

fcom m64real

fcom ST(i)

fcom

fcomp m32real

fcomp m64real

fcomp ST(i)

fcomp
fcompp

fcos fcos Cosine

fdecstp fdecstp Decrement Stack-Top Pointer

fdiv/fdivp/fidiv Divide

fdiv m32real

fdiv m64real

fdiv ST(i),ST

fdiv ST,ST(i)

fdivp ST,ST(i)

fdiv

fidiv m32int

fidiv m16int

fdivr/fdivpr/fidivr Reverse Divide

fdivr m32real

fdivr m64real

fdivr ST(i),ST

fdivr ST,ST(i)

fdivrp ST,ST(i)

fdivr

fidivr m32int

fidivr m16int

ffree ffree ST(i) Free Floating-Point Register

ficom/ficomp Compare Integer

ficom m16real

ficom m32real

ficomp m16int

ficomp m32int

fild filds m16int Load Integer

fildl m32int

fildq m64int

fincstp fincstp Increment Stack-Top Pointer

finit/fninit finit Initialize Floating-Point Unit

fninit

fist/fistp fists m16int Store Integer

fistl m32int

fistps m16int

fistpl m32int

fistpq m64int

fld flds m32real Load Real

fldl m64real

fldt m80real

fld ST(i)

fld1/fldl2t/fldl2e/fldpi/fldlg2/gldln2/fldz Load Constant
fld1
fld2t
fld2e
fldpi
fldlg2
fldln2
fldz

fldcw fldcw m2byte Load Control Word

fldenv fldenv m14/28byte Load FPU Environment

fmul/fmulp/fimul Multiply

fmul m32real

fmul m64real

fmul ST(i),ST

fmul ST(i),ST

fmulp ST,ST(i)

fmul

fimul m32int

fimul m16int

fnop fnop No Operation

fpatan fpatan Partial Arctangent

fprem fprem Partial Remainder

fprem1 fprem1 Partial Remainder

fptan fptan Partial Tangent

frndint frndint Round to Integer

frstor frstor m94/108byte Restore FPU State

fsave/fnsave Store FPU State

fsave m94/108byte

fnsave m94/108byte

fscale fscale Scale

fsin fsin Sine

fsincos fsincos Sine and Cosine

fsqrt fsqrt Square Root

fst/fstp fst m32real Store Real

fst m64real

fst ST(i)

fstp m32real

fstp m64real

fstp m80real

fstp ST(i)

fstcw/fnstcw Store Control Word

fstcw m2byte

fnstcw m2byte

fstenv/fnstenv Store FPU Environment

fstenv m14/28byte

fnstenv m14/28byte

fstsw/fnstsw Store Status Word

fstsw m2byte

fstsw %ax

fnstsw m2byte

fnstsw %ax

fsub/fsubp/fisub Subtract

fsub m32real

fsub m64real

fsub ST(i),ST

fsub ST,ST(i)

fsubp ST,ST(i)

fsub

fisub m32int

fisub m16int

fsubr/fsubpr/fisubr Reverse Subtract

fsubr m32real

fsubr m64real

fsubr ST(i),ST

fsubr ST,ST(i)

fsubpr ST,ST(i)

fsubr

fisubr m32int

fisubr m16int

ftst ftst Test

fucom/fucomp/fucompp Unordered Compare Real

fucom ST(i)

fucom

fucomp ST(i)

fucomp
fucompp

fwait fwait Wait

fxam fxam Examine

fxch fxch ST(i) Exchange Register Contents

fxch

fxtract fxtract Extract Exponent and

Significand

fyl2x fyl2x Compute y log₂x

fyl2xp1 fyl2xp1 Compute y log₂(x+1)

hlt hlt Halt

idiv idiv r/m8 Signed Divide

idiv r/m16,%ax

idiv r/m32,%eax

imul imul r/m8 Signed Multiply

imul r/m16

imul r/m32

imul r/m16,r16

imul r/m32,r32

imul $imm8,r/m16,r16

imul $imm8,r/m32,r32

imul $imm8,r16

imul $imm8,r32

imul $imm16,r/m16,r16

imul $imm32,r/m32,r32

imul $imm16,r16

imul $imm32,r32

in in $imm8,%al Input from Port

in $imm8,%ax

in $imm8,%eax

in %dx,%al

in %dx,%ax

in %dx,%eax

inc inc r/m8 Increment by 1

inc r/m16

inc r/m32

inc r16

inc r32

ins/insb/insw/insd Input from Port to String
ins
insb
insw
insd

int/into int 3 Call to Interrupt Procedure

int $imm8

into

invd invd Invalidate Cache (i486-specific)

invlpg invlpg m Invalidate TLB Entry

(i486-specific)

iret/iretd iret Interrupt Return

iretd

jcc Jump if Condition is Met

ja rel8 short if above

jae rel8 short if above or equal

jb rel8 short if below

jbe rel8 short if below or equal

jc rel8 short if carry

jcxz rel8 short if %cx register is 0

jecxz rel8 short if %ecx register is 0

je rel8 short if equal

jz rel8 short if 0

jg rel8 short if greater

jge rel8 short if greater or equal

jl rel8 short if less

jle rel8 short if less or equal

jna rel8 short if not above

jnae rel8 short if not above or equal

jnb rel8 short if not below

jnbe rel8 short if not below or equal

jnc rel8 short if not carry

jne rel8 short if not equal

jng rel8 short if not greater

jnge rel8 short if not greater or equal

jnl rel8 short if not less

jnle rel8 short if not less or equal

jno rel8 short if not overflow

jnp rel8 short if not parity

jns rel8 short if not sign

jnz rel8 short if not 0

jo rel8 short if overflow

jp rel8 short if parity

jpe rel8 short if parity even

jpo rel8 short if parity odd

js rel8 short if sign

jz rel8 short if zero

ja rel16/32 near if above

jae rel16/32 near if above or equal

jb rel16/32 near if below

jbe rel16/32 near if below or equal

jc rel16/32 near if carry

je rel16/32 near if equal

jz rel16/32 near if 0

jg rel16/32 near if greater

jge rel16/32 near if greater or equal

jl rel16/32 near if less

jle rel16/32 near if less or equal

jna rel16/32 near if not above

jnae rel16/32 near if not above or equal

jnb rel16/32 near if not below

jnbe rel16/32 near if not below or equal

jnc rel16/32 near if not carry

jne rel16/32 near if not equal

jng rel16/32 near if not greater

jnge rel16/32 near if not greater or less

jnl rel16/32 near if not less

jnle rel16/32 near if not less or equal

jno rel16/32 near if not overflow

jnp rel16/32 near if not parity

jns rel16/32 near if not sign

jnz rel16/32 near if not 0

jo rel16/32 near if overflow

jp rel16/32 near if parity

jpe rel16/32 near if parity even

jpo rel16/32 near if parity odd

js rel16/32 near if sign

jz rel16/32 near if 0

jmp jmp rel8 Jump

jmp rel16

jmp r/m16

jmp rel32

jmp r/m32

ljmp $imm16,$imm32

ljmp m16

ljmp m32

lahf lahf Load Flags into AH Register

lar lar r/m16,r16 Load Access Rights Byte

lar r/m32,r32

lea lea m,r16 Load Effective Address

lea m,r32

leave leave High Level Procedure Exit

lgdt/lidt lgdt m16&32 Load Global/Interrupt

lidt m16&32 Descriptor Table Register

lgs/lss/lds/les/lfs Load Full Pointer

lgs m16:16,r16

lgs m16:32,r32

lss m16:16,r16

lss m16:32,r32

lds m16:16,r16

lds m16:32,r32

les m16:16,r16

les m16:32,r32

lfs m16:16,r16

lfs m16:32,r32

lldt lldt r/m16 Load Local Descriptor Table

Register

lmsw lmsw r/m16 Load Machine Status Word

lock lock Assert LOCK# Signal Prefix

lods/lodsb/lodsw/lodsd Load String Operand

lods m8

lods m16

lods m32

lodsb
lodsw
lodsd

(optional forms with segment override)

lodsb %seg:0(%esi),%al

lodsw %seg:0(%esi),%al

lodsd %seg:0(%esi),%al

loop/loopcond Loop Control with CX Counter

loop rel8

loope rel8

loopz rel8

loopne rel8

loopnz rel8

lsl lsl r/m16,r16 Load Segment Limit

lsl r/m32,r32

ltr ltr r/m16 Load Task Register

mov mov r8,r/m8 Move Data

mov r16,r/m16

mov r32,r/m32

mov r/m8,r8

mov r/m16,r16

mov r/m16,r16

mov Sreg,r/m16

mov r/m16,Sreg

mov moffs8,%al

mov moffs8,%ax

mov moffs8,%eax

mov %al,moffs8

mov %ax,moffs16

mov %eax,moffs32

mov $imm8,reg8

mov $imm16,reg16

mov $imm32,reg32

mov $imm8,r/m8

mov $imm16,r/m16

mov $imm32,r/m32

mov mov r32,%cr0 Move to/from Special Registers

mov %cr0/%cr2/%cr3,r32

mov %cr2/%cr3,r32

mov %dr03,r32

mov %dr6/%dr7,r32

mov r32,%dr03

mov r32,%dr6/%dr7

mov %tr4/%tr5/%tr6/%tr7,r32

mov r32,%tr4/%tr5/%tr6/%tr7

mov %tr3,r32

mov r32,%tr3

movs/movsb/movsw/movsd Move Data from String to String

movs m8,m8

movs m16,m16

movs m32,m32

movsb
movsw
movsd

(optional forms with segment override)

movsb %seg:0(%esi),%es:0(%edi)

movsw %seg:0(%esi),%es:0(%edi)

movsd %seg:0(%esi),%es:0(%edi)

movsx movsx r/m8,r16 Move with Sign-Extend

movsx r/m8,r32

movsx r/m16,r32

movzx movzx r/m8,r16 Move with Zero-Extend

movzx r/m8,r32

movzx r/m16,r32

mul mul r/m8,%al Unsigned Multiplication of AL

mul r/m16,%ax or AX

mul r/m32,%eax

neg neg r/m8 Two's Complement Negation

neg r/m16

neg r/m32

nop nop No Operation

not not r/m8 One's Complement Negation

not r/m16

not r/m32

or or $imm8,r/m8 Logical Inclusive OR

or $imm16,r/m16

or $imm32,r/m32

or $imm8,r/m16

or $imm8,r/m32

or r8,r/m8

or r16,r/m16

or r32,r/m32

or r/m8,r8

or r/m16,r16

or r/m32,r32

out out %al,$imm8 Output to Port

out %ax,$imm8

out %eax,$imm8

out %al,%dx

out %ax,%dx

out %eax,%dx

outs/outsb/outsw/outsd Output String to Port

outs r/m8,%dx

outs r/m16,%dx

outs r/m32,%dx

outsb
outsw
outsd

pop pop m16 Pop a Word from the Stack

pop m32

pop r16

pop r32

pop %ds

pop %es

pop %ss

pop %fs

pop %gs

popa/popad Pop all General Registers

popa
popad

popf/popfd popf Pop Stack into FLAGS or

popfd EFLAGS Register

push push m16 Push Operand onto the Stack

push m32

push r16

push r32

push $imm8

push $imm16

push $imm32

push Sreg

pusha/pushad Push all General Registers
pusha
pushad

pushf/pushfd Push Flags Register onto the

pushf Stack

pushfd

rcl/rcr/rol/ror Rotate

rcl 1,r/m8

rcl %cl,r/m8

rcl $imm8,r/m8

rcl 1,r/m16

rcl %cl,r/m16

rcl $imm8,r/m16

rcl 1,r/m32

rcl %cl,r/m32

rcl $imm8,r/m32

rcr 1,r/m8

rcr %cl,r/m8

rcr $imm8,r/m8

rcr 1,r/m16

rcr %cl,r/m16

rcr $imm8,r/m16

rcr 1,r/m32

rcr %cl,r/m32

rcr $imm8,r/m32

rol 1,r/m8

rol %cl,r/m8

rol $imm8,r/m8

rol 1,r/m16

rol %cl,r/m16

rol $imm8,r/m16

rol 1,r/m32

rol %cl,r/m32

rol $imm8,r/m32

ror 1,r/m8

ror %cl,r/m8

ror $imm8,r/m8

ror 1,r/m16

ror %cl,r/m16

ror $imm8,r/m16

ror 1,r/m32

ror %cl,r/m32

ror $imm8,r/m32

rdmsr rdmsr Read from Model-Specific

Register (Pentium-specific)

rdstc rdstc Read from Time Stamp Counter

(Pentium-specific)

rep/repe/repz/repne/repnz Repeat Following String

rep ins %dx,rm8 Operation

rep ins %dx,rm16

rep ins %dx,rm32

rep movs m8,m8

rep movs m16,m16

rep movs m32,m32

rep outs rm8,%dx

rep outs rm16,%dx

rep outs rm32,%dx

rep lods m8

rep lods m16

rep lods m32

rep stos m8

rep stos m16

rep stos m32

repe cmps m8,m8

repe cmps m16,m16

repe cmps m32,m32

repe scas m8

repe scas m16

repe scas m32

repne cmps m8,m8

repne cmps m16,m16

repne cmps m32,m32

repne scas m8

repne scas m16

repne scas m32

ret ret Return from Procedure

ret $imm16

rsm rsm Resume from System-

Management Mode
(Pentium-specific)

sahf sahf Store AH into Flags

sal/sar/shl/shr Shift Instructions

sal 1,r/m8

sal %cl,r/m8

sal $imm8,r/m8

sal 1,r/m16

sal %cl,r/m16

sal $imm8,r/m16

sal 1,r/m32

sal %cl,r/m32

sal $imm8,r/m32

sar 1,r/m8

sar %cl,r/m8

sar $imm8,r/m8

sar 1,r/m16

sar %cl,r/m16

sar $imm8,r/m16

sar 1,r/m32

sar %cl,r/m32

sar $imm8,r/m32

shl 1,r/m8

shl %cl,r/m8

shl $imm8,r/m8

shl 1,r/m16

shl %cl,r/m16

shl $imm8,r/m16

shl 1,r/m32

shl %cl,r/m32

shl $imm8,r/m32

shr 1,r/m8

shr %cl,r/m8

shr $imm8,r/m8

shr 1,r/m16

shr %cl,r/m16

shr $imm8,r/m16

shr 1,r/m32

shr %cl,r/m32

shr $imm8,r/m32

sbb sbb $imm8,r/m8 Integer Subtraction with Borrow

sbb $imm16,r/m16

sbb $imm32,r/m32

sbb $imm8,r/m16

sbb $imm8,r/m32

sbb r8,r/m8

sbb r16,r/m16

sbb r32,r/m32

sbb r/m8,r8

sbb r/m16,r16

sbb r/m32,r32

scas/scasb/scasw/scasd Compare String Data

scas m8

scas m16

scas m32

scasb
scasw
scasd

(optional forms with segment override)

scasb %al,%seg:0(%edi)

scasw %ax,%seg:0(%edi)

scasd %eax,%seg:0(%edi)

setcc Byte Set on Condition

seta r/m8 above

setae r/m8 above or equal

setb r/m8 below

setbe r/m8 below or equal

setc r/m8 carry

sete r/m8 equal

setg r/m8 greater

setge r/m8 greater or equal

setl r/m8 less

setle r/m8 less or equal

setna r/m8 not above

setnae r/m8 not abover or equal

setnb r/m8 not below

setnbe r/m8 not below or equal

setnc r/m8 not carry

setne r/m8 not equal

setng r/m8 not greater

setnge r/m8 not greater or equal

setnl r/m8 not less

setnle r/m8 not less or equal

setno r/m8 not overflow

setnp r/m8 not parity

setns r/m8 not sign

setnz r/m8 not zero

seto r/m8 overflow

setp r/m8 parity

setpe r/m8 parity even

setpo r/m8 parity odd

sets r/m8 sign

setz r/m8 zero

sgdt/sidt sgdt m Store Global/Interrupt

sidt m Descriptor Table Register

shld shld $imm8,r16,r/m16 Double Precision Shift Left

shld $imm8,r32,r/m32

shld %cl,r16,r/m16

shld %cl,r32,r/m32

shrd shrd $imm8,r16,r/m16 Double Precision Shift Right

shrd $imm8,r32,r/m32

shrd %cl,r16,r/m16

shrd %cl,r32,r/m32

sldt sldt r/m16 Store Local Descriptor Table

Register

smsw smsw r/m16 Store Machine Status Word

stc stc Set Carry Flag

std std Set Direction Flag

sti sti Set Interrupt Flag

stos/stosb/stosw/stosd Store String Data

stos m8

stos m16

stos m32

stosb
stosw
stosd

(optional forms with segment override)

stosb %al,%seg:0(%edi)

stosw %ax,%seg:0(%edi)

stosd %eax,%seg:0(%edi)

str str r/m16 Store Task Register

sub sub $imm8,r/m8 Integer Subtraction

sub $imm16,r/m16

sub $imm32,r/m32

sub $imm8,r/m16

sub $imm8,r/m32

sub r8,r/m8

sub r16,r/m16

sub r32,r/m32

sub r/m8,r8

sub r/m16,r16

sub r/m32,r32

test test $imm8,r/m8 Logical Compare

test $imm16,r/m16

test $imm32,r/m32

test r8,r/m8

test r16,r/m16

test r32,r/m32

verr, verw verr r/m16 Verify a Segment for Reading or

verw r/m16 Writing

wait wait Wait

wbinvd wbinvd Write-Back and Invalidate

Cache (i486-specific)

wrmsr wrmsr Write to Model-Specific

Register (Pentium-specific)

xadd xadd r8,r/m8 Exchange and Add

xadd r16,r/m16 (i486-specific)

xadd r32,r/m32

xchg xchg r16,%ax Exchange Register/Memory

xchg %ax,r16 with Register

xchg %eax,r32

xchg r32,%eax

xchg r8,r/m8

xchg r/m8,r8

xchg r16,r/m16

xchg r/m16,r16

xchg r32,r/m32

xchg r/m32,r32

xlat/xlatb xlat m8 Table Look-up Translation

xlatb

xor xor $imm8,r/m8 Logical Exclusive OR

xor $imm16,r/m16

xor $imm32,r/m32

xor $imm8,r/m16

xor $imm8,r/m32

xor r8,r/m8

xor r16,r/m16

xor r32,r/m32

xor r/m8,r8

xor r/m16,r16

xor r/m32,r32

	%cs	code segment register

	%ss	stack segment register

	%ds	data segment register

	%es	data segment register (string operation destination segment)

	%fs	data segment register

	%gs	data segment register

	%cr0%cr3	control registers

	%db0%db7	debug registers

	%tr3%tr7	test registers

		Name is the name that appears in the upper left corner of a page in the Intel manuals.

		Operation Name is the name that appears after the operator name in the Intel manuals. Processor-specific instructions are marked as they occur.

		The form of operands is that used in Intel's i486 Microprocessor Programmer's Reference Manual.

		The order of operands is source destination, the opposite of the order in Intel's manuals.

Name	Operator	Operand	Operation Name

aaa	aaa		ASCII Adjust after Addition

aad	aad		ASCII Adjust AX before

adc	adc	$imm8,r/m8	Add with Carry

	adc	$imm16,r/m16

	adc	$imm32,r/m32

	adc	$imm8,r/m16

	adc	$imm8,r/m32

	adc	r8,r/m8

	adc	r16,r/m16

	adc	r32,r/m32

	adc	r/m8,r8

	adc	r/m16,r16

	adc	r/m32,r32

add	add	$imm8,r/m8	Add

	add	$imm16,r/m16

	add	$imm32,r/m32

	add	$imm8,r/m16

	add	$imm8,r/m32

	add	r8,r/m8

	add	r16,r/m16

	add	r32,r/m32

	add	r/m8,r8

	add	r/m16,r16

	add	r/m32,r32

and	and	$imm8,r/m8	Logical AND

	and	$imm16,r/m16

	and	$imm32,r/m32

	and	$imm8,r/m16

	and	$imm8,r/m32

	and	r8,r/m8

	and	r16,r/m16

	and	r32,r/m32

	and	r/m8,r8

	and	r/m16,r16

	and	r/m32,r32

arpl	arpl	r16,r/m16	Adjust RPL Field of Selector

bound	bound	m16&16,r16	Check Array Index Against

	bound	m32&32,r32	Bounds

bsf	bsf	r/m16,r16	Bit Scan Forward

	bsf	r/m32,r16

bsr	bsr	r/m16,r16	Bit Scan Reverse

	bsr	r/m32,r16

bswap	bswap	r32	Byte Swap (i486-specific)

bt	bt	r16,r/m16	Bit Test

	bt	r32,r/m32

	bt	$imm8,r/m16

	bt	$imm8,r/m32

btc	btc	r16,r/m16	Bit Test and Complement

	btc	r32,r/m32

	btc	$imm8,r/m16

	btc	$imm8,r/m32

btr	btr	r16,r/m16	Bit Test and Reset

	btr	r32,r/m32

	btr	$imm8,r/m16

	btr	$imm8,r/m32

bts	bts	r16,r/m16	Bit Test and Set

	bts	r32,r/m32

	bts	$imm8,r/m16

	bts	$imm8,r/m32

call	call	rel16	Call Procedure

	call	r/m16

	call	ptr16:16

	call	m16:16

	call	rel32

	call	r/m32

	lcall	$imm16,$imm32

	lcall	m16

	lcall	m32

cbw/cwde	cbw		Convert Byte to Word/

	cwde		Convert Word to Doubleword

clc	clc		Clear Carry Flag

cld	cld		Clear Direction Flag

cli	cli		Clear Interrupt Flag

clts	clts		Clear Task-Switched Flag in

cmp	cmp	$imm8,r/m8	Compare Two Operands

	cmp	$imm16,r/m16

	cmp	$imm32,r/m32

	cmp	$imm8,r/m16

	cmp	$imm8,r/m32

	cmp	r8,r/m8

	cmp	r16,r/m16

	cmp	r32,r/m32

	cmp	r/m8,r8

	cmp	r/m16,r16

	cmp	r/m32,r32

	cmpsb	%seg:0(%esi),%es:0(%edi)

	cmpsw	%seg:0(%esi),%es:0(%edi)

	cmpsd	%seg:0(%esi),%es:0(%edi)

cmpxchg	cmpxchg	r8,r/m8	Compare and Exchange

	cmpxchg	r16,r/m16	(i486-specific)

	cmpxchg	r32,r/m32

cmpxchg8b	cmpxchg8b	m32	Compare and Exchange 8 Bytes

cwd/cdq	cwd	Convert Word to Doubleword/

	cdq	Convert Doubleword to

dec	dec	r/m8	Decrement by 1

	dec	r/m16

	dec	r/m32

	dec	r16

	dec	r32

div	div	r/m8,%al	Unsigned Divide

	div	r/m16,%ax

	div	r/m32,%eax

enter	enter	$imm16,$imm8	Make Stack Frame for Procedure

	fadd	m32real

	fadd	m64real

	fadd	ST(i),ST

	fadd	ST,ST(i)

	faddp	ST,ST(i)

fbld	fbld	m80dec	Load Binary Coded Decimal

fbstp	fbstp	m80dec	Store Binary Coded Decimal and

	fdiv	m32real

	fdiv	m64real

	fdiv	ST(i),ST

	fdiv	ST,ST(i)

	fdivp	ST,ST(i)

	fdivr	m32real

	fdivr	m64real

	fdivr	ST(i),ST

	fdivr	ST,ST(i)

	fdivrp	ST,ST(i)

fild	filds	m16int	Load Integer

	fildl	m32int

	fildq	m64int

fincstp	fincstp		Increment Stack-Top Pointer

finit/fninit	finit		Initialize Floating-Point Unit

fist/fistp	fists	m16int	Store Integer

	fistl	m32int

	fistps	m16int

	fistpl	m32int

	fistpq	m64int

fld	flds	m32real	Load Real

	fldl	m64real

	fldt	m80real

	fld	ST(i)

fldcw	fldcw	m2byte	Load Control Word

fldenv	fldenv	m14/28byte	Load FPU Environment

	fmul	m32real

	fmul	m64real

	fmul	ST(i),ST

	fmul	ST(i),ST

	fmulp	ST,ST(i)

fnop	fnop	No Operation

fpatan	fpatan	Partial Arctangent

fprem	fprem	Partial Remainder

fprem1	fprem1	Partial Remainder

fptan	fptan	Partial Tangent

frndint	frndint	Round to Integer

frstor	frstor	m94/108byte	Restore FPU State

fsave/fnsave			Store FPU State

	fsave	m94/108byte

	fnsave	m94/108byte

fscale	fscale		Scale

fsin	fsin		Sine

fsincos	fsincos		Sine and Cosine

fsqrt	fsqrt		Square Root

fst/fstp	fst	m32real	Store Real

	fst	m64real

	fst	ST(i)

	fstp	m32real

	fstp	m64real

	fstp	m80real

	fstp	ST(i)

	fsub	m32real

	fsub	m64real

	fsub	ST(i),ST

	fsub	ST,ST(i)

	fsubp	ST,ST(i)

	fsubr	m32real

	fsubr	m64real

	fsubr	ST(i),ST

	fsubr	ST,ST(i)

	fsubpr	ST,ST(i)

fyl2x	fyl2x	Compute y log₂x

fyl2xp1	fyl2xp1	Compute y log₂(x+1)

hlt	hlt	Halt

idiv	idiv	r/m8	Signed Divide

	idiv	r/m16,%ax

	idiv	r/m32,%eax

imul	imul	r/m8	Signed Multiply

	imul	r/m16

	imul	r/m32

	imul	r/m16,r16

	imul	r/m32,r32

	imul	$imm8,r/m16,r16

	imul	$imm8,r/m32,r32

	imul	$imm8,r16

	imul	$imm8,r32

	imul	$imm16,r/m16,r16

	imul	$imm32,r/m32,r32

	imul	$imm16,r16

	imul	$imm32,r32

in	in	$imm8,%al	Input from Port

	in	$imm8,%ax

	in	$imm8,%eax

	in	%dx,%al

	in	%dx,%ax

	in	%dx,%eax

inc	inc	r/m8	Increment by 1

	inc	r/m16

	inc	r/m32

	inc	r16

	inc	r32

ja	rel8	short if above

jae	rel8	short if above or equal

jb	rel8	short if below

jbe	rel8	short if below or equal

jc	rel8	short if carry

jcxz	rel8	short if %cx register is 0

jecxz	rel8	short if %ecx register is 0

je	rel8	short if equal

jz	rel8	short if 0

jg	rel8	short if greater

jge	rel8	short if greater or equal

jl	rel8	short if less

jle	rel8	short if less or equal

jna	rel8	short if not above

jnae	rel8	short if not above or equal

jnb	rel8	short if not below

jnbe	rel8	short if not below or equal

jnc	rel8	short if not carry

jne	rel8	short if not equal

jng	rel8	short if not greater

jnge	rel8	short if not greater or equal

jnl	rel8	short if not less

jnle	rel8	short if not less or equal

jno	rel8	short if not overflow

jnp	rel8	short if not parity

jns	rel8	short if not sign

jnz	rel8	short if not 0

jo	rel8	short if overflow

jp	rel8	short if parity

jpe	rel8	short if parity even

jpo	rel8	short if parity odd

js	rel8	short if sign

jz	rel8	short if zero

ja	rel16/32	near if above

jae	rel16/32	near if above or equal

jb	rel16/32	near if below

jbe	rel16/32	near if below or equal

jc	rel16/32	near if carry

je	rel16/32	near if equal

jz	rel16/32	near if 0

jg	rel16/32	near if greater

jge	rel16/32	near if greater or equal

jl	rel16/32	near if less

jle	rel16/32	near if less or equal

jna	rel16/32	near if not above

jnae	rel16/32	near if not above or equal

jnb	rel16/32	near if not below

jnbe	rel16/32	near if not below or equal

jnc	rel16/32	near if not carry

jne	rel16/32	near if not equal

jng	rel16/32	near if not greater

jnge	rel16/32	near if not greater or less

jnl	rel16/32	near if not less

jnle	rel16/32	near if not less or equal

jno	rel16/32	near if not overflow

jnp	rel16/32	near if not parity

jns	rel16/32	near if not sign

jnz	rel16/32	near if not 0

jo	rel16/32	near if overflow

jp	rel16/32	near if parity

jpe	rel16/32	near if parity even

jpo	rel16/32	near if parity odd

js	rel16/32	near if sign

jz	rel16/32	near if 0

jmp	jmp	rel8	Jump

	jmp	rel16

	jmp	r/m16

	jmp	rel32

	jmp	r/m32

	ljmp	$imm16,$imm32

	ljmp	m16

	ljmp	m32

lahf	lahf		Load Flags into AH Register

lar	lar	r/m16,r16	Load Access Rights Byte

	lar	r/m32,r32

lea	lea	m,r16	Load Effective Address

	lea	m,r32

leave	leave		High Level Procedure Exit

lgdt/lidt	lgdt	m16&32	Load Global/Interrupt

	lidt	m16&32	Descriptor Table Register

	lgs	m16:16,r16

	lgs	m16:32,r32

	lss	m16:16,r16

	lss	m16:32,r32

	lds	m16:16,r16

	lds	m16:32,r32

	les	m16:16,r16

	les	m16:32,r32

	lfs	m16:16,r16

	lfs	m16:32,r32

lmsw	lmsw	r/m16	Load Machine Status Word

lock	lock		Assert LOCK# Signal Prefix

	lodsb	%seg:0(%esi),%al

	lodsw	%seg:0(%esi),%al

	lodsd	%seg:0(%esi),%al

lsl	lsl	r/m16,r16	Load Segment Limit

	lsl	r/m32,r32

ltr	ltr	r/m16	Load Task Register

mov	mov	r8,r/m8	Move Data

	mov	r16,r/m16

	mov	r32,r/m32

	mov	r/m8,r8

	mov	r/m16,r16

	mov	r/m16,r16

	mov	Sreg,r/m16

	mov	r/m16,Sreg

	mov	moffs8,%al

	mov	moffs8,%ax

	mov	moffs8,%eax

	mov	%al,moffs8

	mov	%ax,moffs16

	mov	%eax,moffs32

	mov	$imm8,reg8

	mov	$imm16,reg16

	mov	$imm32,reg32

	mov	$imm8,r/m8

	mov	$imm16,r/m16

	mov	$imm32,r/m32

mov	mov	r32,%cr0	Move to/from Special Registers

	mov	%cr0/%cr2/%cr3,r32

	mov	%cr2/%cr3,r32

	mov	%dr03,r32

	mov	%dr6/%dr7,r32

	mov	r32,%dr03

	mov	r32,%dr6/%dr7

	mov	%tr4/%tr5/%tr6/%tr7,r32

	mov	r32,%tr4/%tr5/%tr6/%tr7

	mov	%tr3,r32

	mov	r32,%tr3
