Copyright ©1995 by NeXT Computer, Inc.  All Rights Reserved.

adjustcursor

dx dy  adjustcursor

Moves the cursor location by (dx, dy) from its current location.  dx and dy are given in the current coordinate system.  If the current device isn't a window, the invalidid error is executed.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO currentmouse, setmouse

alphaimage

pixelswide pixelshigh bits/sample matrix datasrc0[...datasrcn] multiproc ncolors alphaimage

Renders an image whose samples include an alpha component.  (Most programmers should use NXImageBitmap() instead of alphaimage.)  This operator is similar to the standard colorimage operator (as documented by Adobe Systems).  However, note the following:

		When supplying the data components, alpha is always given last--either as the last data source (datasrcn) if the data is given in separate vectors, or as the last element in a set of interleaved data.
		The ncolors operand doesn't account for alpha--the value of ncolors is the number of color components only.

ERRORS invalidid, limitcheck, rangecheck, stackunderflow, typecheck, undefined, undefinedresult

basetocurrent

bx by  basetocurrent  cx cy

Converts (bx, by) from the current window's base coordinate system to its current coordinate system.  If the current device isn't a window, the invalidid error is executed.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO basetoscreen, currenttobase, currenttoscreen, screentobase, screentocurrent

basetoscreen

bx by  basetoscreen  sx sy

Converts (bx, by) from the current window's base coordinate system to the screen coordinate system.  If the current device isn't a window, the invalidid error is executed.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO basetocurrent, currenttobase, currenttoscreen, screentobase, screentocurrent

buttondown

buttondown  isdown

Returns true if the left or only mouse button is currently down; otherwise it returns false. Note:  To test whether the mouse button is still down from a mouse-down event, use stilldown instead of buttondown; buttondown will return true even if the mouse button has been released and pressed again since the original mouse-down event.

ERRORS none SEE ALSO currentmouse, rightbuttondown, rightstilldown, stilldown

cleartrackingrect

trectnum gstate  cleartrackingrect

Clears the tracking rectangle identified by trectnum, as set by settrackingrect, in the device referred to by gstate (or the current graphics state if gstate is null).  If no such rectangle exists, the invalidid error is executed.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO settrackingrect

composite

srcxsrcywidth height srcgstate destxdestyop  composite

Performs the compositing operation specified by op between pairs of pixels in two images, a source and a destination.  The source pixels are in the window device referred to by the srcgstate graphics state, and the destination pixels are in the current window.  If srcgstate is null, the current graphics state is assumed.  If either graphics state doesn't refer to a window device, the invalidid error is executed. The rectangle specified by srcx, srcy, width, and height defines the source image.  The outline of the rectangle may cross pixel boundaries due to fractional coordinates, scaling, or rotated axes.  The pixels included in the source are all those that the outline of the rectangle encloses or enters. The destination image has the same size, shape, and orientation as the source; destxand destygive destination's location image compared to the source.  (Even if the two graphic states have different orientations, the images will not; composite will not rotate images.) Both images are clipped to the frame rectangles of their respective windows.  The destination image is further clipped to the clipping path of the current graphics state.   The result of a composite operation replaces the destination image. op specifies the compositing operation.  The choices for op and the result of each operation are given in the following illustration.

ERRORS invalidid, rangecheck, stackunderflow, typecheck SEE ALSO compositerect, setalpha, setgray, sethsbcolor, setrgbcolor

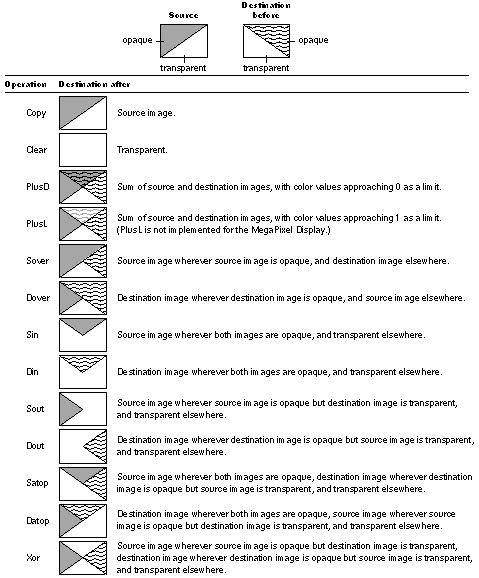

Figure 5-1.  Compositing Operations compositerect

destxdestywidth height op  compositerect

In general, this operator is the same as the composite operator except that there's no real source image.  The destination is in the current graphics state; destx, desty, width, and height describe the destination image in that graphics state's current coordinate system.  The effect on the destination is as if there were a source image filled with the color and coverage specified by the graphics state's current color parameter.  op has the same meaning as the op operand of the composite operator; however, one additional operation, Highlight, is allowed. On the MegaPixel Display, Highlight turns every white pixel in the destination rectangle to light gray and every light gray pixel to white, regardless of the pixel's coverage value.  Repeating the same operation reverses the effect.  (Highlight may act differently on other devices.  For example, on displays that assign just one bit per pixel, it would invert every pixel.) Note:  The Highlight operation doesn't change the value of a pixel's coverage component.  To ensure that the pixel's color and coverage combination remains valid, Highlight operations should be temporary and should be reversed before any further compositing. For compositerect, the pixels included in the destination are those that the outline of the specified rectangle encloses or enters. The destination image is clipped to the frame rectangle and clipping path of the window in the current graphics state. If the current graphics state doesn't refer to a window device, the invalidid error is executed.

ERRORS invalidid, rangecheck, stackunderflow, typecheck SEE ALSO composite, setalpha, setgray, sethsbcolor, setrgbcolor

copypage Warning:  This standard PostScript operator has no effect in the NEXTSTEP implementation of the Display PostScript system. countframebuffers

countframebuffers  count

Returns the number of frame buffers that the Window Server is actually using.

ERRORS stackoverflow SEE ALSO framebuffer

countscreenlist

context  countscreenlist  count

Returns the number of windows in the screen list that were created by the PostScript context specified by context.  This is in contrast with countwindowlist, which returns the number of windows created by the context without regard to their inclusion in the screen list. If context is 0, all windows in the screen list are counted, without regard to the context that created them.

ERRORS invalidid, rangecheck, stackunderflow, typecheck SEE ALSO countwindowlist, screenlist, windowlist

countwindowlist

context  countwindowlist  count

Returns the number of windows that were created by the PostScript context specified by context.  This is in contrast with countscreenlist, which returns the number of windows in the screen list that were created by the PostScript context specified by context. If context is 0, all windows are counted, without regard to the context that created them.

ERRORS stackunderflow, typecheck SEE ALSO countscreenlist, screenlist, windowlist

currentactiveapp

currentactiveapp  context

Warning:  Don't use this operator if you're using the Application Kit. Returns the active application's context.  This operator is used by the window packages to assist with wait cursor operation.

ERRORS stackoverflow SEE ALSO setactiveapp

currentalpha

currentalpha  coverage

Returns the coverage parameter of the current graphics state.

ERRORS none SEE ALSO composite, setalpha

currentdefaultdepthlimit

currentdefaultdepthlimit  depth

Warning:  Don't use this operator if you're using the Application Kit.  Use Window's defaultDepthLimit class method instead. Returns the current context's default depth limit.  This value determines a new window's depth limit.

ERRORS stackoverflow SEE ALSO setdefaultdepthlimit, setwindowdepthlimit, currentwindowdepthlimit, currentwindowdepth

currentdeviceinfo

window  currentdeviceinfo  min max iscolor

Returns device-related information about the current state of window.  min and max are the smallest and largest number of bits per sample, respectively, and iscolor is a boolean value indicating whether the device is a color device.

ERRORS invalidid, stackunderflow, typecheck

currenteventmask

window  currenteventmask  mask

Warning:  Don't use this operator if you're using the Application Kit.  Use Window's eventMask method instead. Returns the current Window Server-level event mask for the specified window.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO seteventmask

currentframebuffertransfer

fbnum currentframebuffertransfer  redproc greenproc blueproc grayproc

Returns the current transfer functions in effect for the framebuffer indexed by fbnum.  fbnum ranges from 0 to (countframebuffers 1).

ERRORS invalidid, stackunderflow, typecheck SEE ALSO setframebuffertransfer, countframebuffers, framebuffer

currentmouse

window  currentmouse  x y

Warning:  Don't use this operator if you're using the Application Kit.  Use Window's getMouseLocation: instead. Returns the current x and y coordinates of the mouse location in the base coordinate system of the specified window.  If the mouse isn't inside the specified window, these coordinates may be outside the coordinate range defined for the window.  If window is 0, the current mouse position is returned relative to the screen coordinate system.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO basetocurrent, basetoscreen, buttondown, rightbuttondown, rightstilldown, setmouse, stilldown

currentowner

window  currentowner  context

Returns a number identifying the PostScript context that currently owns the specified window.  By default, this is the PostScript context that created the window.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO setowner, termwindow, window

currentshowpageprocedure

window  currentshowpageprocedure  proc

Returns the PostScript procedure that's executed when the showpage operator is executed while the specified window is the current device.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO setshowpageprocedure

currentrusage

currentrusage  ctime utime stime msgsend msgrcv nsignals nvcsw nivcsw

Returns information about the current time of day and about resource usage by the Window Server, as provided by the UNIX system call getrusage().  The items returned, and their types, are as follows:

	Name	Type	Value
	ctime	float	Current time in seconds, modulo 10000
	utime	float	User time for the Server process in seconds
	stime	float	System time for the Server process in seconds
	msgsend	int	Messages sent by the Server to clients
	msgrcv	int	Message received by the Server from clients
	nsignals	int	Number of signals received by the Server process
	nvcsw	int	Number of voluntary context switches
	nivcsw	int	Number of involuntary context switches

currenttobase

cx cy  currenttobase  bx by

Converts (cx,cy) from the current coordinate system of the current window to its base coordinate system.  If the current device isn't a window, the invalidid error is executed.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO basetocurrent, basetoscreen, currenttoscreen, screentobase, screentocurrent

currenttoscreen

cx cy  currenttoscreen  sx sy

Converts (cx, cy) from the current coordinate system of the current window to the screen coordinate system.  If the current device isn't a window, the invalidid error is executed.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO basetocurrent, basetoscreen, currenttobase, screentobase, screentocurrent

currentuser

currentuser  uid gid

Returns the user id (uid) and the group id (gid) of the user currently logged in on the console of the machine that's running the Window Server.

ERRORS stackoverflow

currentwaitcursorenabled

context  currentwaitcursorenabled  isenabled

Returns the state of context's wait cursor flag.  If context is 0, returns the state of the global wait cursor flag.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO setwaitcursorenabled

currentwindow

currentwindow  window

Returns the window number of the current window.  Executes the invalidid error if the current device isn't a window.

ERRORS invalidid SEE ALSO windowdeviceround

currentwindowalpha

window  currentwindowalpha  alpha

Returns an integer indicating whether the Window Server is currently storing alpha values for the specified window.  Possible alpha values are:

	2	Window is opaque; alpha values are explicitly allocated.
	0	Alpha values are stored explicitly
	2	Window is opaque; no explicit alpha

ERRORS invalidid, stackunderflow, typecheck

currentwindowbounds

window  currentwindowbounds  x y width height

Warning:  Don't use this operator if you're using the Application Kit.  Use Window's getFrame: or Application's getScreenSize: method instead. Returns the location and size of the window in screen coordinates.  Pass 0 for window to get the size of the entire workspace (the smallest rectangle that encloses all active screens). x and y will be in the range [215, 2151]; width and height will be in the range [0, 10000].

ERRORS invalidid, stackunderflow, typecheck SEE ALSO movewindow, placewindow

currentwindowdepth

window  currentwindowdepth  depth

Warning:  Don't use this operator if you're using the Application Kit. Returns window's current depth.  The invalidid error is executed if window doesn't exist.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO setwindowdepthlimit, currentwindowdepthlimit, setdefaultdepthlimit, currentdefaultdepthlimit

currentwindowdepthlimit

window  currentwindowdepthlimit  depth

Warning:  Don't use this operator if you're using the Application Kit.  Use Window's depthLimit method instead. Returns the window's current depth limit, the maximum depth to which the window can be promoted.  Unless altered by the setwindowdepthlimit operator, a window's depth limit is equal to its context's default depth limit.  The invalidid error is executed if window doesn't exist.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO setwindowdepthlimit, currentwindowdepth, setdefaultdepthlimit, currentdefaultdepthlimit

currentwindowdict

window  currentwindowdict  dict

Warning:  Don't use this operator if you're using the Application Kit. Returns the specified window's dictionary.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO setwindowdict

currentwindowlevel

window  currentwindowlevel  level

Returns window's tier.  Executes the invalidid error if window doesn't exist.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO setwindowlevel

currentwriteblock

currentwriteblock  doesblock

Returns whether the Window Server delays sending data to a client application whenever the Server's output buffer fills. currentwriteblock assumes the current context.  If doesblock is true, the Server waits until the buffer can accept more data.  If doesblock is false, the Server discards data that can't be accepted immediately.

ERRORS none SEE ALSO setwriteblock

dissolve

srcxsrcywidth height srcgstate destxdestydelta  dissolve

The effect of this operation is a blending of a source and a destination image.  The first seven arguments choose source and destination pixels as they do for composite.  The exact fraction of the blend is specified by delta, which is a floating-point number between 0.0 and 1.0; the resulting image is:

delta *source + (1 delta)*destination

If srcgstate is null, the current graphics state is assumed.  If srcgstate or the current graphics state does not refer to a window device, this operator executes the invalidid error.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO composite

dumpwindow

dumplevel window  dumpwindow

Warning:  Don't use this operator if you're using the Application Kit. Prints information about window to the standard output file.  Only dumplevel 0 is implemented.  The information printed is the position and number of bytes of backing storage for the window.

ERRORS invalidid, rangecheck, stackunderflow, typecheck SEE ALSO dumpwindows

dumpwindows

dumplevel context  dumpwindows

Warning:  Don't use this operator if you're using the Application Kit. Prints information about all windows owned by context to the standard output file.  If context is 0, it prints information about all windows.  Only dumplevel 0 is implemented.

ERRORS invalidid, rangecheck, stackunderflow, typecheck SEE ALSO dumpwindow

erasepage

erasepage

Warning:  This standard operator is different in the NEXTSTEP implementation. Erases the entire window to opaque white.

ERRORS invalidid SEE ALSO copypage, showpage

findwindow

x y place otherwindow  findwindow  x' y' window found

findwindow starts from a given position in the screen list, as explained below, and searches for the first window below that position that contains the point (x, y).  The x and y values are given in screen coordinates. The starting position is determined by place and otherwindow.  place can be Above or Below, and otherwindow is the window number of a window in the screen list.  If you specify Above 0, findwindow checks all windows in the screen list. If a window containing the point is found, findwindow returns true, along with the window number and the corresponding location in the base coordinate system of the window.  Otherwise, it returns false, and the values of x', y', and window are undefined.

ERRORS rangecheck, stackunderflow, typecheck

flushgraphics

flushgraphics

Warning:  Don't use this operator if you're using the Application Kit.  Use Window's flushWindow method instead. Flushes to the screen all drawing done in the current buffered window.  If the current window is retained or nonretained, flushgraphics has no effect.

ERRORS invalidid, stackunderflow, typecheck

framebuffer

index string  framebuffer  name slot unit romid x y width height maxdepth

Provides information on the active frame buffer specified by index, where index ranges from 0 to countframebuffers1.  string must be large enough to hold the resulting name of the frame buffer.  slot is the NeXTbusTMslot the frame buffer is physically occupying.  If a board supports multiple frame buffers, unit uniquely identifies the frame buffer within a slot.  The ROM product code is returned in romid.  The bottom left corner of the frame buffer is returned in x and y (relative to the screen coordinate system).  The size of the frame buffer in pixels is returned in width and height.  maxdepth is the maximum depth displayable on this frame buffer (for example, NX_TwentyFourBitRGB). The limitcheck error is executed if string isn't large enough to hold name.  The rangecheck error is executed if index is out of bounds.

ERRORS limitcheck, rangecheck, stackunderflow, typecheck SEE ALSO countframebuffers

frontwindow

frontwindow  window

Warning:  Don't use this operator if you're using the Application Kit. Returns the window number of the frontmost window on the screen.  If there aren't any windows on the screen, frontwindow returns 0.

ERRORS none SEE ALSO orderwindow

hidecursor

hidecursor

Removes the cursor from the screen.  It remains in effect until balanced by a call to showcursor.

ERRORS none SEE ALSO obscurecursor, showcursor

hideinstance

x y width height  hideinstance

In the current window, hideinstance removes any instance drawing from the rectangle specified by x, y, width, and height.  x, y, width, and height are given in the window's current coordinate system.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO newinstance, setinstance


dict  image

Allows a window's graphics state object to be used as a source of sample data.  dict must be an image dictionary in which only those keys listed in the following table are significant:

	Key	Type	Value or Meaning
	ImageType	integer	(Required) Must be 2.
	XOrigin	real	(Required)  X origin of the source rectangle in user space coordinates as specified by the transformation in the DataSource entry.
	YOrigin	real	(Required) Y origin of the same.
	Width	real	(Required) Width of the same.
	Height	real	(Required) Height of the same.
	ImageMatrix	array	(Required) The transformation matrix.
	DataSource	gstate	(Required) A graphics state object that contains the device that will be used as the source of sample data. This device will also be used to determine the pixel representation for the source, and the color space to be used by the image.
	Interpolate	boolean	(Optional) Request for image interpolation.
	UnpaintedPath	(various)	(Return value) If some of the pixels in the source weren't available (because of clipping), then the UnpaintedPath entry contains a userpath in the current (destination) user space that encloses the area that couldn't be filled.
	PixelCopy	boolean	(Optional) If true, indicates that the source pixels should be copied directly, without going through the normal color conversion, transfer function, or halftoning. The bits per pixel of the source must match the bits per pixel of the destination, otherwise a typecheck error will occur. If false or not present, the pixels will be imaged in the usual way.

ERRORS invalidid, rangecheck, stackunderflow, typecheck SEE ALSO alphaimage

initgraphics

initgraphics

Warning:  This standard operator has additional effects in the NEXTSTEP implementation of the Display PostScript system. In addition to the effects documented by Adobe, this operator sets the coverage parameter in the current window's graphics state to 1 (opaque) and turns off instance drawing

ERRORS none SEE ALSO hideinstance, newinstance, setalpha, setinstance

machportdevice

width height bbox matrix hostname portname pixelencoding machportdevice

Sets up a PostScript device that can provide a generic rendering service for device-control programs requiring page bitmaps from PostScript documents.  For each rendered page, machportdevice sends a Mach message containing the page bitmap to a port that has been registered with the name server on the network. width and height are integers that determine the number of device pixels for the page. bbox is an array of integers that defines the rectangle (by giving its lower left and upper right corners) that encompasses the imageable area.  The array takes the form

[lowerLeftX lowerLeftY upperRightX upperRightY]

For the common case where the entire raster is imageable, bbox may be expressed as an empty array.  If bbox isn't in the correct form, or if any portion of the rectangle it expresses falls outside [0 0 width height], a rangecheck results.  The bitmap data is stored in x-axis major indexing order.  The device coordinate of the lower left corner of the first pixel is (0,0), the coordinate of the next pixel is (1,0) and so on for the entire scanline.  Scanlines are long-word aligned. matrix is the default transformation matrix for the device. hostname and portname are strings that together identify the port that will receive the Mach messages.  If hostname is empty, the local host is assumed.  If it's "*", the port is searched for on all available hosts.  If (in any case) the port can't be found, a rangecheck results. pixelencoding is a dictionary describing the format for the image data rendered by the Window Server.  It should contain these entries:

Key

Type

Value

	samplesPerPixel	integer	Must be 1.
	bitsPerSample	integer	Must be 1 or 2.
	colorSpace	integer	Color space specification (see below).
	isPlanar	boolean	true if sample values are stored in separate arrays (currently must be false).
	defaultHalftone	dictionary	Passed to sethalftone during device creation to set up device default halftone.
	initialTransfer	procedure	Passed to settransfer during device creation to set up the initial transfer function for device.
	jobTag	integer	Allows machportdevice to tag rendering jobs.  This value is included in the jobTag field of all printpage messages generated by this device.

The value of colorSpace should be one of the following values, predefined in nextdict:

	Name	Value	Description
	NX_OneIsBlackColorSpace	0	Monochromatic, high sample value is black.
	NX_OneIsWhiteColorSpace	1	Monochromatic, high sample value is white.
	NX_RgbColorSpace	2	RGB, (1,1,1) is white.
	NX_CMYKColorSpace	5	CMYK, (0,0,0,0) is white.

Only the following combinations of colorSpace and bitsPerSample are supported:

	colorSpace	bitsPerSample
	NX_OneIsBlackColorSpace	1
	NX_OneIsWhiteColorSpace	2

These read-only pixel-encoding dictionaries are predefined in nextdict:

	Name	Description
	NeXTLaser-300	NeXT Laser Printer at 300 dpi resolution
	NeXTLaser-400	NeXT Laser Printer at 400 dpi resolution
	NeXTMegaPixelDisplay	MegaPixel Display's 2 bits-per-pixel gray

The pagebuffer data is passed out-of-line, appearing in the receiving application's address space.  (If the receiver is on the same host, the received pagebuffer references the same physical memory as the Window Server's pagebuffer, and is mapped copy-on-write.)  The application should use vm_deallocate() to release the pagebuffer memory when it's no longer needed. The receiver must acknowledge receipt of the data by sending a simple msg_header_t (with msg_id == NX_PRINTPAGEMSGID) back to the remote_port passed in the print message.  The Window Server will not continue executing the page description until acknowledgement is received. If more than one copy of the page is needed (through either the copypage or #copies mechanism) each copy is sent as a separate message.  In this case the same pagebuffer will be sent in multiple messages.  The letter, legal, and note page types are gracefully ignored. Messaging errors cause the invalidaccess error to be executed.

EXAMPLES This example sets up a 400 dpi 8.5 by 11 inch page on a raster with upper left origin (as with the NeXT 400 dpi Laser Printer) and sends its print page messages to the port named "nlp-123" on the local host:

/dpi 400 def
/width dpi 8.5 mul cvi def
/height dpi 11 mul cvi def

width height    % page bitmap dimensions in pixels
[]              % use it all
[dpi 72 div 0 0 dpi -72 div 0 height] % device transform
() (nlp-123)    % host (local) & port
NeXTLaser-400   % pixel-encoding description
machportdevice
This example sets up an 8 by 10 inch page on the same 8.5 by 11 inch page.  It specifies a 400 dpi raster with 1/4 inch horizontal margins and 1/2 inch vertical margins:
/dpi 400 def
/width dpi 8.5 mul cvi def
/height dpi 11 mul cvi def
/topdots dpi .5 mul cvi def
/leftdots dpi .25 mul cvi def

width height        % page bitmap dimensions in pixels
[
leftdots
topdots
width leftdots sub
height topdots sub
]                   % imageable area of bounding box
[
dpi 72 div
0
0
dpi -72 div
leftdots
height topdots sub
]                   % device transform
() (nlp-123)        % host (local) & port
NeXTLaser-400       % pixel-encoding description
machportdevice

Note that in this example, the user space origin is at the lower left corner of the imageable area (leftdots, height-topdots) in the device raster coordinate system.  Usually, the imageable area is meant to correspond with the ultimate destination of the bits. For example, a printer may have a constant-sized pagebuffer with a fixed orientation in the paper path, but be able to accept various sizes of paper.  In this case, the page bitmap size will always be fixed, but the imageable area and default device transformation can be adjusted to make the user space origin appear at the lower left corner of each printed page.

ERRORS invalidaccess, limitcheck, rangecheck, stackunderflow, typecheck

movewindow

x y window  movewindow

Warning:  Don't use this operator if you're using the Application Kit.  Use Window's moveTo:: method instead. Moves the lower left corner of the specified window to the screen coordinates (x, y).  No portion of the repositioned window can have an x or y coordinate with an absolute value greater than 16000.  The operands can be integer, real, or radix numbers; however, they are converted to integers in the Window Server by rounding toward 0. The window need not be the frontmost window.  This operator doesn't change window's ordering in the screen list.

ERRORS invalidid, rangecheck, stackunderflow, typecheck SEE ALSO currentwindowbounds, placewindow

newinstance

newinstance

Removes any instance drawing from the current window.

ERRORS invalidid SEE ALSO hideinstance, setinstance

nextrelease

nextrelease  string

Returns version information about this release of NEXTSTEP.

ERRORS stackoverflow SEE ALSO osname, ostype

NextStepEncoding

NextStepEncoding  array

Pushes the NextStepEncoding vector on the operand stack.  This is a 256-element array, indexed by character codes, whose values are the character names for those codes.

ERRORS stackoverflow

obscurecursor

obscurecursor

Removes the cursor image from the screen until the next time the mouse is moved.  It's usually called in response to typing by the user, so the cursor won't be in the way.  If the cursor has already been removed due to an obscurecursor call, obscurecursor has no effect.

ERRORS none SEE ALSO hidecursor, revealcursor

orderwindow

place otherwindow window  orderwindow

Warning:  Don't use this operator if you're using the Application Kit.  Use Window's orderWindow:relativeTo: instead. Orders window in the screen list as indicated by place and otherwindow.  place can be Above, Below, or Out:

		If place is Above or Below, the window is placed in the screen list immediately above or below the window specified by otherwindow.
		If place is Above or Below and otherwindow is 0, the window is placed above or below all windows in its tier.
		If place is Above or Below, otherwindow must be a window in the screen list; otherwise, the invalidid error is executed.
		If place is Out, otherwindow is ignored, and the window is removed from the screen list, so it won't appear anywhere on the screen.  Windows that aren't in the screen list don't receive user events.

Note:  orderwindow doesn't change which window is the current window.

ERRORS invalidid, rangecheck, stackunderflow, typecheck SEE ALSO frontwindow

osname

osname  string

Returns a string identifying the operating system of the Window Server's current operating environment.  osname is defined in the statusdict dictionary, a dictionary that defines operators specific to a particular implementation of the PostScript language. osname can be executed as follows:

statusdict /osname get exec

ERRORS none SEE ALSO nextrelease, ostype

ostype

ostype  int

Returns a number identifying the operating system of the Window Server's current operating environment.  ostype is defined in the statusdict dictionary, a dictionary that defines operators specific to a particular implementation of the PostScript language. ostype can be executed as follows:

statusdict /ostype get exec

ERRORS none SEE ALSO nextrelease, osname

placewindow

x y width height window  placewindow

Warning:  Don't use this operator if you're using the Application Kit.  Use Window's placeWindow: method instead. Repositions and resizes the specified window, effectively allowing it to be resized from any corner or point.  x, y, width, and height are given in the screen coordinate system.  No portion of the repositioned window can have an x or y coordinate with an absolute value greater than 16000; width and height must be in the range from 0 to 10000.  The four operands can be integer or real numbers; however, they are converted to integers in the Window Server by rounding toward 0. placewindow places the lower left corner of the window at (x, y) and resizes it to have a width of width and a height of height. The pixels that are in the intersection of the old and new positions of the window survive unchanged (see Figure 5-2).  Any other areas of the newly positioned window are filled with the window's exposure color (see setexposurecolor).

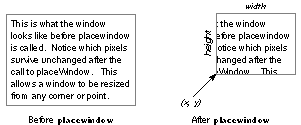

Figure 5-2.  placewindow After moving or resizing a window with placewindow, you must execute the initmatrix and initclip operators to reestablish the window's default transformation matrix and default clipping path.

ERRORS invalidid, rangecheck, stackunderflow, typecheck SEE ALSO currentwindowbounds, movewindow, setexposurecolor

playsound

soundname priority  playsound

Plays the sound soundname.  The Window Server searches for a standard soundfile of the name soundname.snd The search progresses through the following directories in the order given, stopping when the sound is located.

~/Library/Sounds /LocalLibrary/Sounds /NextLibrary/Sounds

No error occurs if the soundfile isn't found:  The operator has no effect. The soundfile's playback is assigned the priority level priority.  The playback interrupts any currently playing sound of the same or lower priority level.

ERRORS stackunderflow, typecheck

posteventbycontext

type x y time flags window subtype misc0 misc1 context  posteventbycontext  success

Posts an event to the specified context.  The nine parameters preceding the context parameter coincide with the NXEvent structure members (see "Types and Constants" for the definition of the NXEvent structure).  The x and y coordinate arguments are passed directly to the receiving context without undergoing any transformations.  window is the Window Server's global window number.  Returns true if the event was successfully posted to context, and false otherwise. You use this operator to post an application-defined event to your own application.  Use Mach messaging to communicate between applications.

ERRORS stackunderflow, typecheck

readimage

x y width height proc0[... procn-1] string bool  readimage

Reads the pixels that make up the rectangular image described by x, y, width, and height in the current window.  (Most programmers should use NXReadBitmap() instead of this operator.) Usually the image is the rectangle that has a lower left corner of (x, y) in the current coordinate system and a width and height of width and height.  If the axes have been rotated so that the sides of the rectangle are no longer aligned with the edges of the screen, the image is the smallest screen-aligned rectangle enclosing the given rectangle. You typically call sizeimage before readimage (sending it the same x, y, width, and height values you'll use for readimage) to find out ncolors, the number of color components that readimage must read.  bool is a boolean value that determines whether readimage reads the alpha component in addition to the color component(s) for each pixel.  The total number of components to be read for each pixel, together with the multiproc value returned by sizeimage, determine n, the number of procedures that readimage requires.  If multiproc is false, n equals 1.  Otherwise, n equals the number of color components plus the alpha component, if present. readimage executes the procedures in order, 0 through n1, as many times as needed.  For each execution, it pushes on the operand stack a substring of string containing the data from as many scanlines as possible.  The length of the substring is a multiple of width * bits/sample * (samples/proc) / 8 rounded up to the nearest integer.  (The width and bits/sample values are provided by the sizeimage operator.  samples is the number of color components plus 1 for the alpha component, if present.) The samples are ordered and packed as they are for the image, colorimage, or alphaimage operator.  For example, the alpha component is last and, if necessary, extra bits fill up the last character of every scanline.  Note that the contents of string are valid only for the duration of one call to one procedure because the same string is reused on each procedure call.  The rangecheck error is executed if string isn't long enough for one scanline.

ERRORS rangecheck, stackunderflow, typecheck SEE ALSO alphaimage, sizeimage

revealcursor

revealcursor

Redisplays the cursor that was hidden by a call to obscurecursor, assuming that the cursor hasn't already been revealed by mouse movement.  If the cursor hasn't been removed from the screen by a call to obscurecursor, revealcursor has no effect.

ERRORS none SEE ALSO obscurecursor

rightbuttondown

rightbuttondown  isdown

Returns true if the right mouse button is currently down; otherwise it returns false. Note:  To test whether the right mouse button is still down from a mouse-down event, use rightstilldown instead of rightbuttondown; rightbuttondown will return true even if the mouse button has been released and pressed again since the original mouse-down event.

ERRORS none SEE ALSO buttondown, currentmouse, rightstilldown, stilldown

rightstilldown

eventnum  rightstilldown  stilldown

Returns true if the right mouse button is still down from the mouse-down event specified by eventnum; otherwise it returns false. eventnum should be the number stored in the data component of the event record for an event of type Rmousedown.

ERRORS stackunderflow, typecheck SEE ALSO buttondown, currentmouse, rightbuttondown, stilldown

screenlist

array context  screenlist  subarray

Fills the array with the window numbers of all windows in the screen list that are owned by the PostScript context specified by context.  It returns the subarray containing those window numbers, in order from front to back.  If array isn't large enough to hold them all, this operator will return the frontmost windows that fit in the array. If context is 0, all windows in the screen list are returned.

EXAMPLE This example yields an array containing the window numbers of all windows in the screen list that are owned by the current PostScript context:

currentcontext
countscreenlist            % find out how many windows
array                      % create array to hold them
currentcontext screenlist  % fill it in

ERRORS invalidaccess, invalidid, rangecheck, stackunderflow, typecheck SEE ALSO countscreenlist, countwindowlist, windowlist

screentobase

sx sy  screentobase  bx by

Converts (sx, sy) from the screen coordinate system to the current window's base coordinate system.  If the current device isn't a window, the invalidid error is executed.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO basetocurrent, basetoscreen, currenttobase, currenttoscreen, screentocurrent

screentocurrent

sx sy  screentocurrent  cx cy

Converts (sx,sy) from the screen coordinate system to the current coordinate system of the current window.  If the current device isn't a window, the invalidid error is executed.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO basetocurrent, basetoscreen, currenttobase, currenttoscreen, screentobase

setactiveapp

context  setactiveapp

Warning:  Don't use this operator if you're using the Application Kit. Records the active application's main (usually only) context.  setactiveapp is used by the window packages to assist with wait cursor operation.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO currentactiveapp

setalpha

coverage  setalpha

Sets the coverage parameter in the current window's graphics state to coverage.  coverage must be a number between 0 and 1, with 0 corresponding to transparent, 1 corresponding to opaque, and intermediate values corresponding to partial coverage.  This establishes how much background shows through for purposes of compositing.

ERRORS stackunderflow, typecheck, undefined SEE ALSO composite, currentalpha, setgray, sethsbcolor, setrgbcolor

setautofill

flag window  setautofill

Applies only to nonretained windows; sets the autofill property of window to the value of flag.  If true, newly exposed areas of the window or areas created by placewindow will automatically be filled with the window's exposure color.  If false, these areas will not change (typically they will continue to contain the image of the last window in that area).  If the current device is not a window, this operator executes the invalidid error.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO placewindow, setexposurecolor, setsendexposed

setcursor

x y mx my  setcursor

Sets the cursor image and hot spot.  Rather than executing this operator directly, you'd normally use a NXCursor object to define and manage cursors. A cursor image is derived from a 16-pixel-square image in a window that's generally placed off-screen.  The x and y operands specify the upper left corner of the image in the window's current coordinate system.  The mx and my operands specify the relative offset (in units of the current coordinate system) from (x, y) to the hot spot, the point in the cursor that coincides with the mouse location.  Assuming the current coordinate system is the base coordinate system, mx must be an integer from 0 to 16, and my must be an integer from 0 to 16.  After setcursor is executed, the image in the window is no longer needed. The cursor is placed on the screen using Sover compositing.  The cursor's opaque areas (alpha = 1) completely cover the background, while its transparent areas (alpha < 1) allow the background to show through to a greater extent depending on the alpha values present in the cursor image. Note:  To make the off-screen window transparent, you can use compositerect with Clear. The rangecheck error is executed if the image doesn't lie entirely within the specified window or if the point (mx, my) isn't inside the image.  If the current device isn't a window, the invalidid error is executed.

ERRORS invalidid, rangecheck, stackunderflow, typecheck SEE ALSO hidecursor, obscurecursor, setmouse

setdefaultdepthlimit

depth  setdefaultdepthlimit

Warning:  Don't use this operator if you're using the Application Kit. Sets the current context's default depth limit to depth.  The Window Server assigns each new context a default depth limit equal to the maximum depth supported by the system.  When a new window is created, its depth limit is set to its context's default depth limit. These depths are defined in nextdict:

	Depth	Meaning
	NX_TwoBitGray	1 spp, 2bps, 2bpp, planar
	NX_EightBitGray	1 spp, 8bps, 8bpp, planar
	NX_TwelveBitRGB	3 spp, 4bps, 16bpp, interleaved
	NX_TwentyFourBitRGB	3 spp, 8bps, 32bpp, interleaved

where spp is the number of samples per pixel; bps is the number of bits per sample; and bpp is the number of bits per pixel, also known as the window's depth.  (The samples-per-pixel value excludes the alpha sample, if present.)  planar and interleaved refer to how the sample data is configured.  If a separate data channel is used for each sample, the configuration is planar.  If data for all samples is stored in a single data channel, the configuration is interleaved. When an alpha sample is present, the number of bits per pixel doubles for planar configurations (4 for NX_TwoBitGray and 16 for NX_EightBitGray).  Interleaved configurations already account for an alpha sample whether or not it's present; thus, the number of bits per pixel for NX_TwelveBitRGB and NX_TwentyFourBitRGB depths remains unchanged. The constant NX_DefaultDepth is also available.  If depth is NX_DefaultDepth, the context's default depth limit is set to the Window Server's maximum visible depth, which is determined by which screens are active. The rangecheck error is executed if depth is invalid.

ERRORS rangecheck, stackunderflow, typecheck SEE ALSO currentdefaultdepthlimit, setwindowdepthlimit, currentwindowdepthlimit, currentwindowdepth

seteventmask

mask window  seteventmask

Warning:  Don't use this operator if you're using the Application Kit.  Use Window's setEventMask: method instead. Sets the Server-level event mask for the specified window to mask.  For windows created by the window packages, this mask may allow additional event types beyond those requested by the application.  The following operand names are defined for mask:

	Mask Operand	Event Type Allowed
	Lmousedownmask	Mouse-down, left or only mouse button
	Lmouseupmask	Mouse-up, left or only mouse button
	Rmousedownmask	Mouse-down, right mouse button
	Rmouseupmask	Mouse-up, right mouse button
	Mousemovedmask	Mouse-moved
	Lmousedraggedmask	Mouse-dragged, left or only mouse button
	Rmousedraggedmask	Mouse-dragged, right mouse button
	Mouseenteredmask	Mouse-entered
	Mouseexitedmask	Mouse-exited
	Keydownmask	Key-down
	Keyupmask	Key-up
	Flagschangedmask	Flags-changed
	Kitdefinedmask	Kit-defined
	Sysdefinedmask	System-defined
	Appdefinedmask	Application-defined
	Allevents	All event types

ERRORS invalidid, stackunderflow, typecheck SEE ALSO currenteventmask

setexposurecolor

setexposurecolor

Applies to nonretained windows only; sets the exposure color to the color specified by the current color parameter in the current graphics state.  The exposure color (white by default) determines the color of newly exposed areas of the window and of new areas created by placewindow.  The alpha value of these areas is always 1 (opaque).  If the current device is not a window, this operator executes the invalidid error.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO placewindow, setautofill, setsendexposed

setflushexposures

flag  setflushexposures

Warning:  Don't use this operator if you're using the Application Kit. Sets whether window-exposed and screen-changed subevents are flushed to clients.  If flag is false, no window-exposed or screen-changed events are flushed to the client until setflushexposures is executed with flag equal to true.  By default, window-exposed and screen-changed events are flushed to clients.

ERRORS invalidid, stackunderflow, typecheck

setframebuffertransfer

redproc greenproc blueproc grayproc fbnum  setframebuffertransfer

Warning:  This operator should only be used for the development of screen-calibration products. Sets the framebuffer transfer functions in effect for the framebuffer indexed by fbnum.  fbnum ranges from 0 to countframebuffers1.  The framebuffer transfer describes the relationship between the framebuffer values of the display, and the voltage produced to drive the monitor. The initial four operands define the transfer procedures:  Monochrome devices use grayproc (but see the Note below), color devices use the others.  The procedures must be allocated in shared virtual memory.  In addition, the Window Server assumes that the framebuffer values are directly proportional to screen brightness.  This is important for the accuracy of dithering, compositing, and similar calculations. The default transfer for NeXT Color Displays is

{ 1 2.2 div exp } bind dup dup {}

Note:  setframebuffertransfer is unsupported on the current generation of NeXT monochrome displays. It's possible to make framebuffer transfer functions persist beyond the lifetime of the Window Server by storing a property in the NetInfo screens database.  In the local NetInfo domain, /localconfig/screens holds the configuration information for the screens known to the Window Server (MegaPixel, NeXTdimension, and so on).  These specify the layout and activation state of the screen.  The NetInfo defaultTransfer property can contain a string of PostScript code suitable for execution by the setframebuffertransfer operator (without the fbnum parameter).  For example, the following represents the NetInfo configuration for a NeXTdimension screen with a default gamma of 2.0:

localhost:1#  niutil -read  . /localconfig/screens/NeXTdimension
name: NeXTdimension
slot: 2
unit: 0
defaultTransfer: {1 2.0 div exp } dup dup dup
bounds: 0 1120 0 832
active: 1
_writers: *

The  defaultTransfer property is used to configure the screen each time the Window Server starts up.  This allows monitor calibration products to save their settings so the next time the Window Server starts up, the new values will be used.  Note that in some cases, the NetInfo configuration state for a monitor will not have active equal to 1, although the monitor is being used by the Window Server.  If there are no active screens (screens that are explicitly marked as being active), the Window Server uses a suitable default, however, the other NetInfo properties for that screen are ignored.  Thus, you must be sure that the screen for which you are adding a defaultTransfer value has active set to 1.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO setframebuffertransfer, countframebuffers, framebuffer

setinstance

flag  setinstance

Sets the instance-drawing mode in the current graphics state on (if flag is true) or off (if flag is false).

ERRORS stackunderflow, typecheck SEE ALSO hideinstance, newinstance

setmouse

x y  setmouse

Moves the mouse location (and, correspondingly, the cursor) to (x, y), given in the current coordinate system.  If the current device isn't a window, the invalidid error is executed.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO adjustcursor, basetocurrent, currentmouse, screentocurrent

setowner

context window  setowner

Sets the owning PostScript context of window to context.  The window is terminated automatically when context is terminated.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO currentowner, termwindow, window

setsendexposed

flag window  setsendexposed

Warning:  Don't use this operator if you're using the Application Kit. Controls whether the Window Server generates a window-exposed subevent (of the kit-defined event) for window under the following circumstances:

		Nonretained window:  When an area of the window is exposed, or a new area is created by placewindow
		Retained or buffered window:  When an area of the window that had instance drawing in it is exposed

By default, window-exposed subevents are generated under these circumstances.  In any case, the window-exposed subevent isn't flushed to the application until the Window Server receives another event.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO setflushexposures, placewindow, setautofill, setexposurecolor

setshowpageprocedure

proc window  setshowpageprocedure

Warning:  Don't use this operator if you're using the Application Kit. Sets the PostScript procedure that's executed, for the specified window, when the showpage procedure is executed.  proc must be allocated in shared virtual memory.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO currentshowpageprocedure

settrackingrect

x y width height leftbool rightbool insidebool userdata trectnum gstate

settrackingrect

or x y width height optionarray trectnum gstate settrackingrect

Important:  The settrackingrect operator boasts two form, distinguished by the number and contents of the operands that are passed.  The operator itself looks at its operands to determine how to proceed.  The common portion of the two forms is described immediately below.  Attention is then paid to the features that set the forms apart. Sets a tracking rectangle in the window referred to by gstate to the rectangle specified by x, y, width, and height (in the coordinate system of that graphics state).  If gstate is null, the window referred to by the current graphics state is used. trectnum is an arbitrary integer that can be any number except 0.  It's used to identify tracking rectangles; no two tracking rectangles can share the same trectnum value.  Any number of tracking rectangles may be set in a single window. The tracking rectangle will remain in effect until cleartrackingrect is called, or until another tracking rectangle with the same trectnum is set. Form 1

x y width height leftbool rightbool insidebool userdata trectnum gstate

settrackingrect

In this form, the application receives mouse-exited and mouse-entered events as the cursor leaves and reenters the visible portion of the tracking rectangle.   In the event record for a mouse-exited or mouse-entered event, the data component will contain trectnum along with the event number of the last mouse-down event. userdata is an arbitrary integer that you assign to the tracking rectangle.  Since several tracking rectangles can share the same userdata value, you can use userdata to identify an object in your application that will be notified when a mouse-entered or mouse-exited event occurs in any of the tracking rectangles. You can specify that mouse-entered and mouse-exited events be generated only if certain mouse buttons are down.  If leftbool is true, the events will be generated only when the left mouse button is down; likewise for rightbool and the right mouse button.  If both leftbool and rightbool are true, the events will be generated only if both mouse buttons are down.  If both leftbool and rightbool are false, the position of the mouse buttons isn't taken into account in generating mouse-entered and mouse-exited events. settrackingrect causes the Window Server to repeatedly compare the current cursor position to the previous one to see whether the cursor has moved from inside the tracking rectangle to outside it or vice versa.  insidebool tells settrackingrect whether to consider the initial cursor position to be inside or outside the tracking rectangle:

		If insidebool is true and the cursor is initially outside the tracking rectangle, a mouse-exited event is generated.
		If insidebool is false and the cursor is initially inside the tracking rectangle, a mouse-entered event is generated.

Form 2

x y width height optionarray trectnum gstate settrackingrect

In this form, settrackingrect sets special event-gathering attributes of a rectangle (events are not generated when the boundary is crossed). optionarray contains key-value pairs that define the attributes that you're interested in.  An empty option array is meaningless and will raise a rangecheck error.   The following keys are currently defined:

	Key	Type	Meaning
	Pressure	bool	Treat non-zero pressure values as a mouse-down (false by default)
	Coalesce	bool	Coalesce mouse motion events (true by default)

EXAMPLE This example turns pressure on and coalescing off (thereby switching the default values):

0 0 10 10 [/Pressure true /Coalesce false] 1 null settrackingrect

ERRORS invalidid, rangecheck, stackunderflow, typecheck SEE ALSO cleartrackingrect

setwaitcursorenabled

bool context  setwaitcursorenabled

Allows applications to enable and disable wait cursor operation in the specified context.  If context is 0, setwaitcursorenabled sets the global wait cursor flag, which overrides all per-context settings.  If the global flag is set to false, the wait cursor is disabled for all contexts.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO currentwaitcursorenabled

setwindowdepthlimit

depth window  setwindowdepthlimit

Warning:  Don't use this operator if you're using the Application Kit.  Use Window's setDepthLimit: method instead. Sets the depth limit of window to depth.  These depths are defined in nextdict:

	Depth	Meaning
	NX_TwoBitGray	1 spp, 2bps, 2bpp, planar
	NX_EightBitGray	1 spp, 8bps, 8bpp, planar
	NX_TwelveBitRGB	3 spp, 4bps, 16bpp, interleaved
	NX_TwentyFourBitRGB	3 spp, 8bps, 32bpp, interleaved

where spp is the number of samples per pixel; bps is the number of bits per sample; and bpp is the number of bits per pixel, also know as the window's depth.  (The samples-per-pixel value excludes the alpha sample, if present.)  planar and interleaved refer to how the sample data is configured.  If a separate data channel is used for each sample, the configuration is planar.  If data for all samples is stored in a single data channel, the configuration is interleaved. When an alpha sample is present, the number of bits per pixel doubles for planar configurations (4 for NX_TwoBitGray and 16 for NX_EightBitGray).  Interleaved configurations already account for an alpha sample whether or not it's present; thus, the number of bits per pixel for NX_TwelveBitRGB and NX_TwentyFourBitRGB depths remains unchanged. Another constant, NX_DefaultDepth, is defined as the default depth limit in the Window Server's current context.  If depth is NX_DefaultDepth, then the window's depth limit is set to the context's default depth limit.  If the resulting depth is lower than the window's current depth, the window's data is dithered down to this depth, which may result in the loss of graphic information. The rangecheck error is executed if depth is invalid.  The invalidid error is executed if window doesn't exist.

ERRORS invalidid, rangecheck, stackunderflow, typecheck SEE ALSO currentwindowdepthlimit, setdefaultdepthlimit, currentdefaultdepthlimit, currentwindowdepth

setwindowdict

dict window  setwindowdict

Warning:  Don't use this operator if you're using the Application Kit. Sets the dictionary for window to dict.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO currentwindowdict

setwindowlevel

level window  setwindowlevel

Sets the window's tier to that specified by level.  Window tiers constrain the action of the orderwindow operator; see orderwindow for more information. You rarely use this operator.  To make a panel float above other windows, use the Panel class's setFloatingPanel: method. Attempting to change the level of workspaceWindow executes the invalidaccess error.  (workspaceWindow is a PostScript name whose value is the window number of the workspace window.)

ERRORS invalidaccess, invalidid, rangecheck, stackunderflow, typecheck SEE ALSO currentwindowlevel, orderwindow

setwindowtype

type window  setwindowtype

Warning:  Don't use this operator if you're using the Application Kit.  Use Window's setBackingType: method instead. Sets the window's buffering type to that specified.  Currently, the only allowable type conversions are from Buffered to Retained and from Retained to Buffered.  All other possibilities execute the limitcheck error.

ERRORS invalidaccess, invalidid, limitcheck, stackunderflow, typecheck SEE ALSO window

setwriteblock

bool  setwriteblock

Sets how the Window Server responds when its output buffer to a client application fills.  If bool is true, the Server defers sending data (event records, error messages, and so on) to that application until there's once again room in the output buffer.  In this way, no output data is lost--this is the Server's default behavior.  If bool is false, the Server ignores the state of the output buffer:  If the buffer fills and there's more data to be sent, the new data is lost.  setwriteblock operates on the current context. Most programmers won't need to use this operator.  If you do use it, make sure that you disable the Window Server's default behavior only during the execution of your own PostScript code.  If it's disabled while Application Kit code is being executed, errors will result.

ERRORS stackoverflow, typecheck SEE ALSO currentwriteblock

showcursor

showcursor

Restores the cursor to the screen if it's been hidden with hidecursor, unless an outer nested hidecursor is still in effect (because it hasn't yet been balanced by a showcursor).  For example:

% cursor is showing initially
. . .
hidecursor      % hides the cursor
. . .
hidecursor  % cursor stays hidden
. . .
showcursor  % cursor still hidden due to first hidecursor
. . .
showcursor      % displays the cursor

ERRORS none SEE ALSO hidecursor

showpage

showpage

Warning:  This standard operator is different in the NEXTSTEP implementation of the Display PostScript system. This has no effect if the current device is a window; otherwise, it functions as documented by Adobe.

ERRORS none SEE ALSO copypage, erasepage

sizeimage

x y width height matrix  sizeimage  pixelswide pixelshigh bits/sample matrix

multiproc ncolors

Returns various parameters required by the readimage operator when reading the image contained in the rectangle given by x, y, width, and height in the current window.  (See readimage for more information.) pixelswide and pixelshigh are the width and height of the image in pixels.  The operand matrix is filled with the transformation matrix from user space to the image coordinate system and pushed back on the operand stack. The other results of this operator describe the window device and are dependent on the window's depth.  Each pixel has ncolors color components plus one alpha component; the value of each component is described by bits/sample bits.  If multiproc is true, readimage will need multiple procedures to read the values of the image's pixels.  Here are the values that sizeimage returns for windows of various depths:

	Window Depth	ncolors	bits/sample	multiproc
	NX_TwoBitGray	1	2	true
	NX_EightBitGray	1	8	true
	NX_TwelveBitRGB	3	4	false
	NX_TwentyFourBitRGB	3	8	false

ERRORS stackunderflow, typecheck SEE ALSO alphaimage, readimage

stilldown

eventnum  stilldown  stilldown

Returns true if the left or only mouse button is still down from the mouse-down event specified by eventnum; otherwise it returns false.  eventnum should be the number stored in the data component of the event record for an event of type Lmousedown.

ERRORS stackunderflow, typecheck SEE ALSO buttondown, currentmouse, rightbuttondown, rightstilldown

termwindow

window  termwindow

Warning:  Don't use this operator if you're using the Application Kit.  Use Window's close method instead. Marks window for destruction.  If the window is in the screen list, it's removed from the screen list and the screen.  The given window number will no longer be valid; any attempt to use it will execute the invalidid error.  The window will actually be destroyed and its storage reclaimed only after the last reference to it from a graphics state is removed.  This can be done by resetting the device in the graphics state to another window or to the null device. Note:  After you use the termwindow operator, if the terminated window had been the current window, you should use the nulldevice operator to remove references to it.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO window, windowdevice, windowdeviceround

window

x y width height type  window  window

Warning:  Don't use this operator if you're using the Application Kit.  Create a Window object instead. Creates a window that has a lower left corner of (x, y) and the indicated width and height.  x, y, width, and height are given in the screen coordinate system.  No portion of a window can have an x or y coordinate with an absolute value greater than 16000; width and height must be in the range from 0 to 10000.  Exceeding these limits executes the rangecheck error.  The four operands can be integer or real numbers; however, they are converted to integers in the Window Server by rounding toward 0. This operator returns the new window's window number, a nonzero integer that's used to refer to the window. type specifies the window's buffering type as Buffered, Retained, or Nonretained. The new window won't be in the screen list; you can put it there with the orderwindow operator.  Windows that aren't in the screen list don't appear on the screen and don't receive user events. The window operator also does the following:

		Sets the origin of the window's base coordinate system to the lower left corner of the window
		Sets the window's clipping path to the outer edge of the window
		Fills the window with opaque white and sets the window's exposure color to white

Note:  This operator does not make the new window the current window; to do that, use windowdeviceround or windowdevice.

ERRORS invalidid, rangecheck, stackunderflow, typecheck SEE ALSO setexposurecolor, termwindow, windowdeviceround

windowdevice

window  windowdevice

Sets the current device of the current graphics state to the given window device.  It also sets the origin of the window's default matrix to the lower left corner of the window.  One unit in the user coordinate system is made equal to 1/72 of an inch.  The clipping path is reset to a rectangle surrounding the window.  Other elements of the graphics state remain unchanged.  This matrix becomes the default matrix for the window:  initmatrix will reestablish this matrix. windowdevice is rarely used in NEXTSTEP since the coordinate system it establishes isn't aligned with the pixels on the screen.  Use the related operator windowdeviceround to create a coordinate system that is aligned. Don't use this operator lightly, as it creates a new matrix and clipping path.  It's significantly more expensive than a setgstate operator.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO windowdeviceround

windowdeviceround

window  windowdeviceround

Sets the current device of the current graphics state to the given window device.  It also sets the origin of the window's default matrix to the lower left corner of the window.  One unit in the user coordinate system is made equal to the width of one pixel. The clipping path is reset to a rectangle surrounding the window.  Other elements of the graphics state remain unchanged.  This matrix becomes the default matrix for the window:  initmatrix will reestablish this matrix. Don't use this operator blithely, as it creates a new matrix and clipping path.  It's significantly more expensive than a setgstate operator.

ERRORS invalidid, stackunderflow, typecheck SEE ALSO windowdevice

windowlist

array context   windowlist  subarray

Fills the array with the window numbers of all windows that are owned by the PostScript context specified by context.  It returns the subarray containing those window numbers, in order from front to back.  If array isn't large enough to hold them all, this operator returns the frontmost windows that fit in the array.

EXAMPLE This example yields an array containing the window numbers of all windows that are owned by the current PostScript context:

currentcontext
countwindowlist            % find out how many windows
array                      % create array to hold them
currentcontext windowlist  % fill it in

ERRORS stackunderflow, typecheck SEE ALSO countscreenlist, countwindowlist, screenlist
